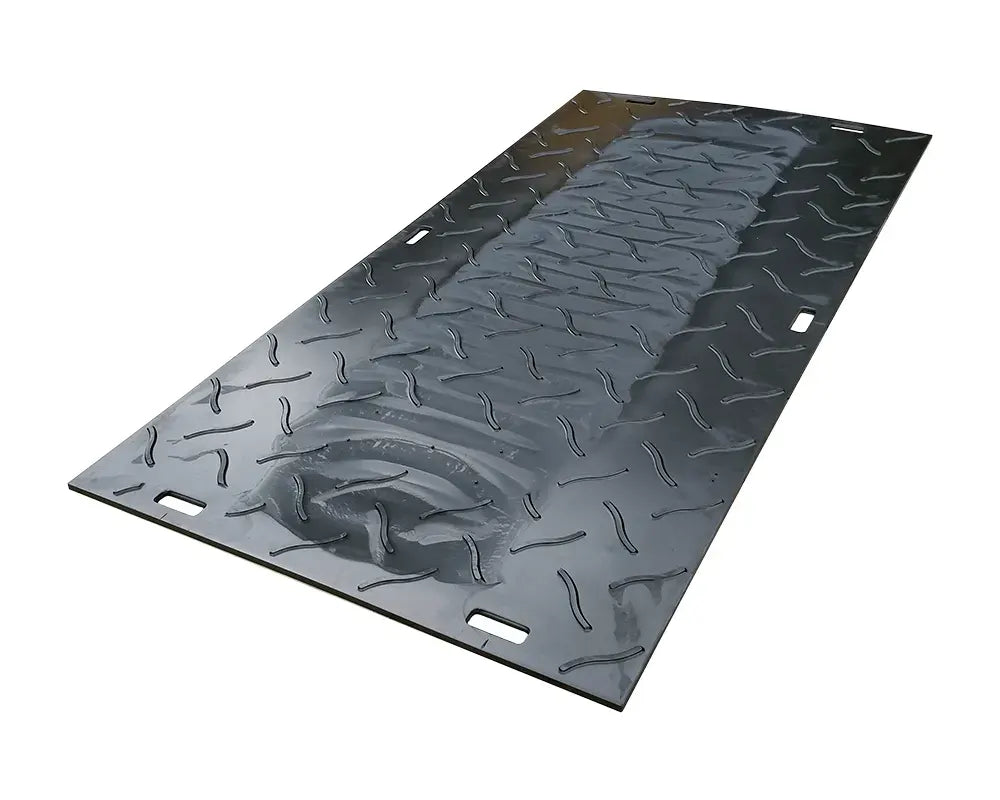

LoadMaster Pro™
Heavy-duty ground protection engineered for extreme load applications.
When conventional ground protection proves inadequate, LoadMaster Pro represents the definitive solution for extreme-load applications. Engineered from reinforced high-density polyethylene with advanced structural ribbing, these heavy-duty mats support tracked excavators, mobile cranes, and articulated dump trucks across the most challenging terrain—from waterlogged construction sites to sensitive heritage landscapes requiring absolute protection.
Specified by civil engineering contractors, utilities companies, and major infrastructure projects where ground integrity and operational safety are non-negotiable. Available in multiple panel sizes to suit different project requirements, LoadMaster Pro creates continuous trackways capable of supporting the heaviest plant machinery without ground penetration or structural failure.
Available Sizes
Select your required size from the options above. All sizes feature the same up to120-tonne load capacity depending on ground conditions and curved anti-slip tread pattern.
Technical Specifications
Key Features
Extreme Load Distribution
120-tonne capacity across all sizes supports tracked excavators, mobile cranes, and articulated dump trucks. Advanced ribbing distributes weight to reduce ground pressure below 0.5 PSI.
Flexible Size Options
Five panel sizes from compact 3m × 0.5m to full 3m × 1m dimensions. Choose the optimal size for your site constraints and coverage requirements.
All-Terrain Performance
Curved anti-slip tread pattern ensures traction in wet, muddy, or icy conditions. Operates reliably from -40°C to +80°C across waterlogged or frozen ground.
Ground Preservation
Protects sensitive turf, heritage sites, and agricultural land from irreversible damage. Eliminates costly reinstatement work and environmental liability.
Multi-Deployment Durability
Reinforced HDPE construction rated for 1000+ heavy-load uses. UV-stabilised material maintains structural integrity across years of outdoor exposure.
Efficient Handling System
Four corner handle cutouts enable secure lifting with forklift or telehandler. Mechanical positioning without crane requirements.
Suitable Industries & Applications
Civil Engineering
Infrastructure Projects
Construction
Heavy Plant Sites
Events
Festivals & Outdoor Venues
Access Routes
Temporary Car Parks
Utilities
Pipeline & Cable Works
Renewable Energy
Wind & Solar Farms
Emergency
Disaster Response
Heritage Sites
Sensitive Landscapes
Installation & Deployment
Step 1 – Site Preparation: Clear debris and level ground surface. Mark trackway route and ensure adequate width for panel placement.
Step 2 – Panel Positioning: Use forklift or telehandler to position first panel. Align interlocking edges for subsequent panels.
Step 3 – Connection: Interlock adjacent panels and insert steel reinforcement pins through connection points to secure trackway.
Step 4 – Inspection: Verify all connections are secure and panels are level before permitting heavy equipment access.
"When ground conditions are extreme and machinery loads are unforgiving, LoadMaster Pro delivers the heavy-duty solution that protects both your equipment investment and the landscape beneath."
Specified by Major Civil Engineering Contractors & Utilities Companies
Quality & Manufacturing
LoadMaster Pro mats are manufactured to exacting standards using virgin HDPE with full UV stabilisation. Each panel undergoes rigorous quality control testing including load distribution analysis, material stress testing, and dimensional verification.
UK warehouse stock ensures immediate availability for urgent projects across all size options.
Trade Enquiries & Project Support
Project-specific quotations available for civil engineering contractors, utilities companies, and infrastructure developers. Our technical sales team provides load calculations, site surveys, trackway design, and delivery scheduling tailored to your project requirements.
UK warehouse stock · Nationwide delivery · Technical support · Hire & purchase options · Volume discounts · Trade credit terms
